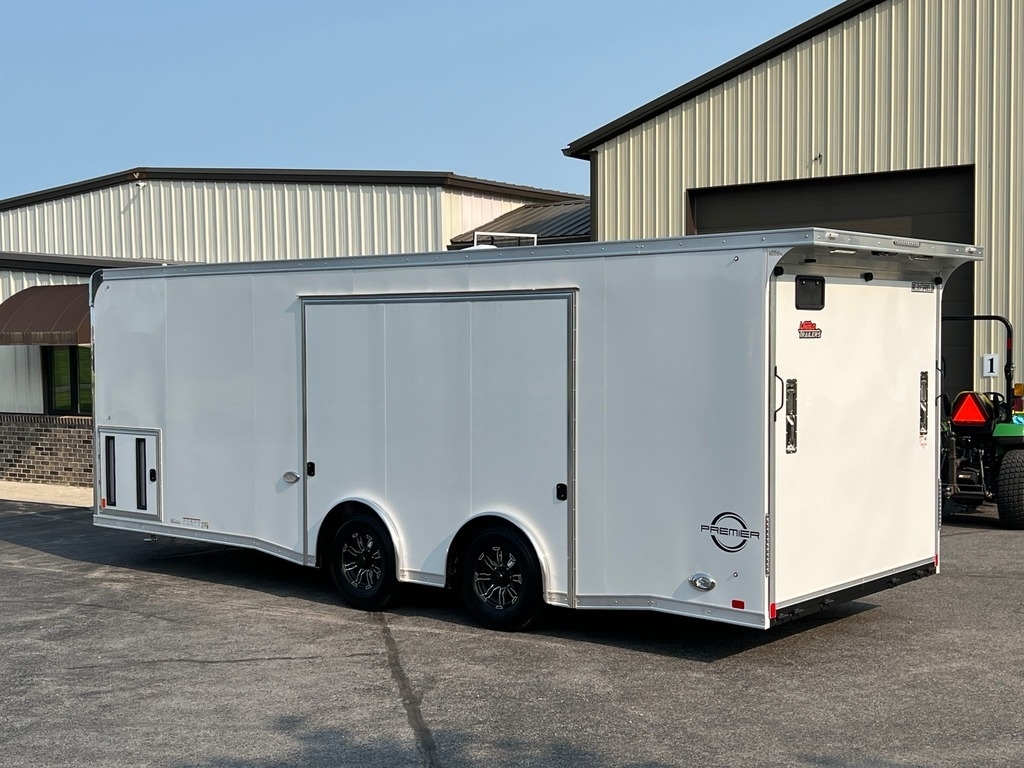

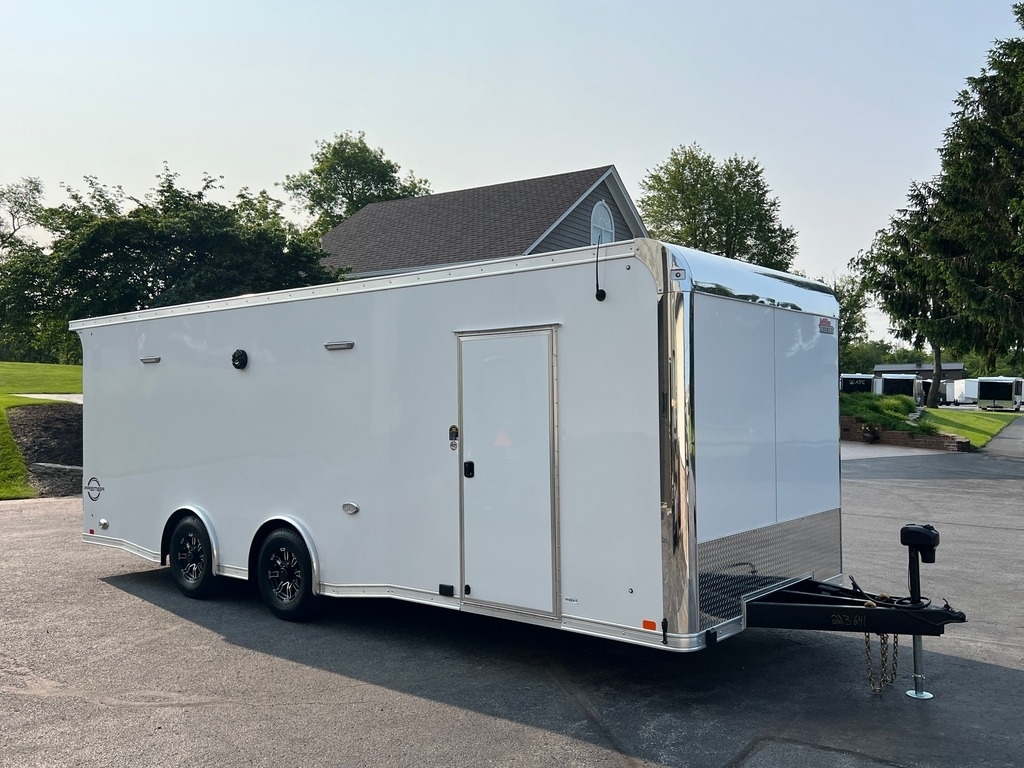

8.5′ X 24′ United Premier 10K GVWR Race Car Trailer w/ Premium Escape Door

Overview

• STOCK #: 223641
• VIN #: 7RXTE2425SA223641
• NEW 2025 UNITED PREMIER 8.5′ X 24′ 10K GVWR RACE CAR HAULER ENCLOSED TRAILER W/ PREMIUM ESCAPE DOOR
• MODEL: PREM-8.524TA52
• 8.5′ WIDE X 24′ LONG (21′ 4" USABLE FLOOR) X 7′ INTERIOR HEIGHT
• (6′ 11" DOOR HEIGHT CLEARANCE)
• GVWR: 9,990 LB
• EMPTY WEIGHT: 5,660 LB
• PAYLOAD CAPACITY: 5,330 LB
• EXTERIOR COLOR: WHITE SCREWLESS

Axle

• (2) DEXTER 5,200 LB INDEPENDENT TORSION SUSPENSION AXLES
• ELECTRIC BRAKES ON ALL WHEELS
• E-Z® LUBE HUBS

Tires

• ST235/80R16G 14-PLY RADIAL TIRES
• 16" 8-LUG ALUMINUM WHEELS (CLEAR COATED)
• CENTER CAPS & CHROME LUG NUTS

Hitch

• 7-WAY RV MOLDED PLUG
• 2-5/16" COUPLER
• ELECTRIC TONGUE JACK W/ DROP-LEG
• SAFETY CHAINS
• BREAKAWAY KIT W/ CHARGER

Frame

• REAR WING (SPOILER)
• STORAGE COMPARTMENT IN FLOOR
• WINCH MOUNT PLATE UNDER FLOOR – FRONT CENTER
• STEEL UNI-BODY CONSTRUCTION
• TRIPLE-TUBE A-FRAME TONGUE – 48" CLEARANCE TO CENTER-BALL
• 6" I-BEAM MAIN FRAME RAILS
• 16" ON-CENTER FLOOR CROSS MEMBERS
• 16" ON-CENTER WALL POSTS
• 16" ON-CENTER ROOF BOWS
• UNDERCOATING ON LOWER FRAME

Vent

• ROOF VENT – BRACED & WIRED FOR FUTURE A/C

Interior

• SCREWLESS ALUMINUM CEILING W/ ANGLED COVE EDGES
• SCREWLESS ALUMINUM INTERIOR WALLS OVER 3/8" PLYWOOD
• MARINE-GRADE CARPET PROTECTIVE WAINSCOTING 3′ UP ON INTERIOR WALLS
• RAISED RUBBER-COIN FLOORING
• 3/4" PLYWOOD SUBFLOOR
• (8) HEAVY DUTY RECESSED D-RINGS ON FLOOR
• FOAM SEAL DUST BLOCK TO CLOSE OFF EXTERIOR BOTTOM OF SIDEWALLS

12 Volt Electrical

• STEREO W/ (2) INTERIOR SPEAKERS & (2) EXTERIOR SPEAKERS – BLUETOOTH / AM / FM
• (4) HUX 14" L.E.D. CEILING LIGHTS
• (1) HUX 14" L.E.D. WORKBENCH / CABINET LIGHT
• (2) 3-WAY WALL SWITCHES FOR INTERIOR LIGHTS – (1) AT SIDE DOOR & (1) AT REAR
• (2) NOVA 14" L.E.D. ANGLED SCENE LIGHTS ON REAR WING W/ WALL SWITCH AT REAR
• (2) NOVA 14" L.E.D. ANGLED SCENE LIGHTS ON CURB SIDE W/ WALL SWITCH AT SIDE DOOR
• 110 VOLT TO 12 VOLT 55 AMP POWER CONVERTER
• DEEP CYCLE MARINE BATTERY IN RECESSED FLOOR BOX – WIRED TO CHARGE CIRCUIT
• CARBON-MONOXIDE DETECTOR (BATTERY OPERATED)
• MIDSHIP AMBER L.E.D. TURN SIGNALS / CLEARANCE LIGHTS
• L.E.D. ANGLED BACK-UP (DOCKING) LIGHTS
• L.E.D. CLEARANCE LIGHTS & TAIL LIGHTS

Exterior

• SCREWLESS .030 ALUMINUM EXTERIOR
• 24" ALUMINUM TREAD PLATE STONE GUARD
• ONE-PIECE ALUMINUM SEAMLESS ROOF
• POLISHED CAST ALUMINUM UPPER FRONT CORNERS
• POLISHED ALUMINUM FRONT CORNERS & TOP WRAP
• 4" ALUMINUM TOP RAIL & BOTTOM RAIL
• SPREAD AXLES W/ INDIVIDUAL ALUMINUM FENDERETTES
• WEATHER GUARD COATING ON FASTENERS

Door

• 36" WIDE X 30" HIGH RV GENERATOR DOOR W/ VENTS & RV LOCK/DEADBOLT
• PREMIUM ESCAPE DOOR W/ REMOVABLE WHEEL WELL & INTEGRATED STEP – 106" WIDE X 73" HIGH, 4′ 9" FROM REAR (9" TIRE HEIGHT ABOVE FLOOR)
• 32" RV SIDE ENTRY DOOR W/ RV LOCK/DEADBOLT & ALUMINUM HOLD-BACK
• BEAVERTAILED FLOOR FOR E-Z LOADING – 4′ LONG / 3" DROP
• RAMP REAR DOOR W/ SPRING ASSIST, 3,000 LB LOAD CAPACITY
• 95-3/4" WIDE X 83" HIGH RAMP DOOR OPENING
• (2) RECESSED CAMLOCKS IN RAMP DOOR
• 1′ ALUMINUM END FLAP ON RAMP DOOR

Cabinets

• ALUMINUM DELUXE CABINET PACKAGE ACROSS FRONT WALL – 36" HIGH X 28" DEEP L-SHAPED BASE CABINET W/ CABLE MOUSE HOLE & ALUMINUM WORK BENCH, 16" TALL X 16" DEEP STRAIGHT OVERHEAD CABINET, & 24" WIDE WARDROBE W/ HELMET SHELF & CLOTHES ROD

110 Volt Electrical

• (4) INTERIOR DUPLEX RECEPTACLES
• (1) EXTERIOR GFI RECEPTACLE
• 50 AMP ELECTRICAL PANEL W/ EXTERIOR MOTOR BASE PLUG
• 50 AMP RV POWER CORD – 25′ LONG W/ TWIST-LOCK PLUG

Warranty

• 3 YEAR LIMITED MANUFACTURER’S WARRANTY
• 25 YEAR LIMITED FLOOR PLYWOOD WARRANTY
• Looking for a trailer built with a focus on quality? Tired of hearing about price, price, price?! Done with searching for last year’s deal on a phantom trailer? We stock and sell real race trailers, with real standard features, and real upgrades! And we do it every day! Why waste thousands on a price point trailer that will only last a few years when you can spend a little more for a quality-focused trailer with upgrades that will give you trouble-free use for years and years!
• 
