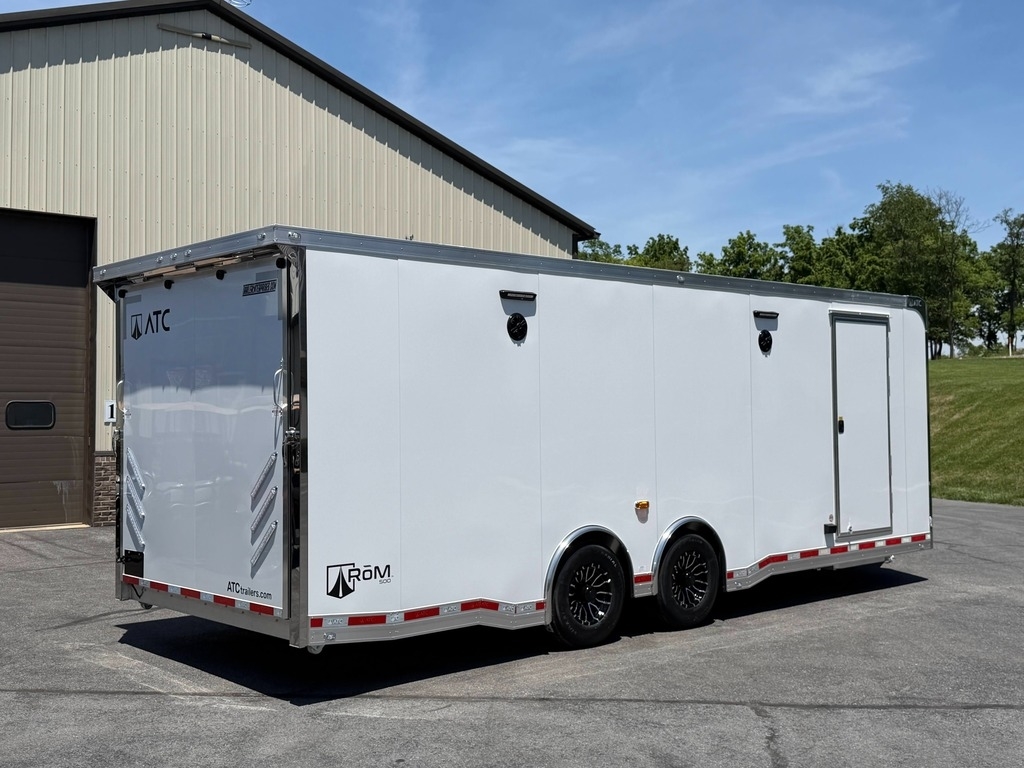

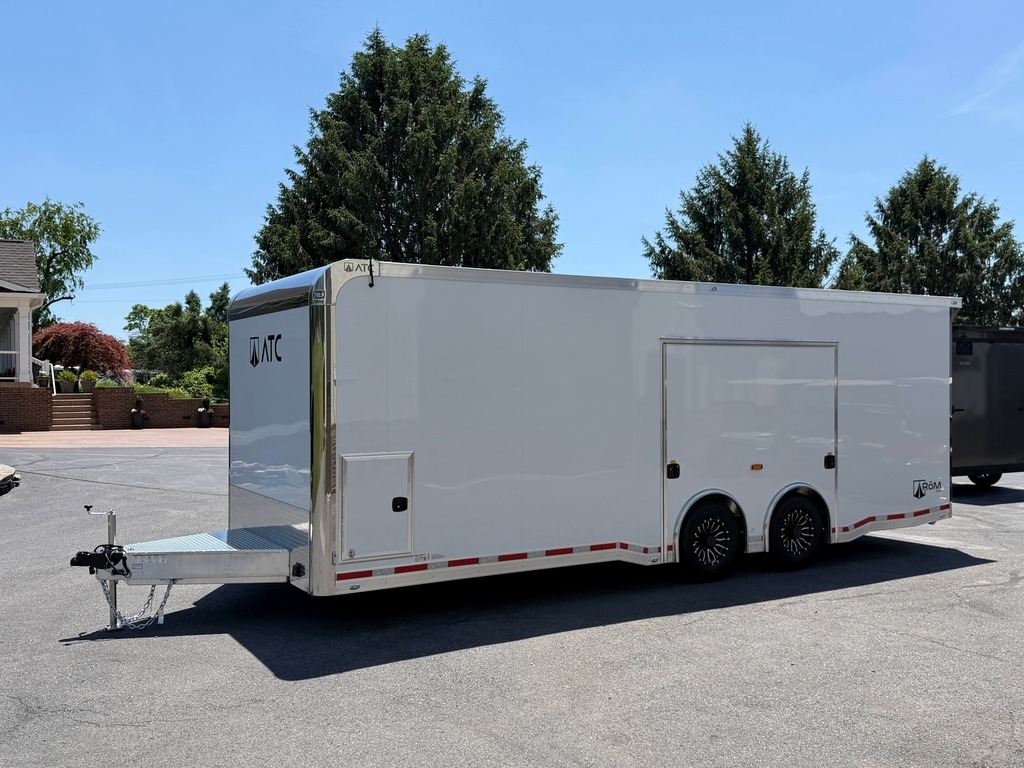

8.5′ X 24′ ATC RoM 500 Aluminum Race Car Trailer w/ Premium Escape Door

Overview

• STOCK #: 236982
• VIN #: 5JX1A242XVF236982
• NEW 2027 ATC RōM 500 8.5′ X 24′ ALUMINUM RACE CAR HAULER ENCLOSED TRAILER W/ PREMIUM ESCAPE DOOR
• MODEL: RM500_B85702400+0-2T6.0K
• 8.5′ WIDE X 24′ LONG (21′ 3" USABLE FLOOR) X 7′ INTERIOR HEIGHT
• (6′ 11" DOOR HEIGHT CLEARANCE)
• GVWR: 13,200 LB
• EMPTY WEIGHT: 4,227 LB
• PAYLOAD CAPACITY: 8,973 LB
• EXTERIOR COLOR: WHITE SCREWLESS

Axle

• (2) DEXTER 6,000 LB INDEPENDENT TORSION SUSPENSION AXLES
• ELECTRIC BRAKES ON ALL WHEELS
• E-Z® LUBE HUBS

Tires

• ST235/80R16E 10-PLY RADIAL TIRES
• 16" 8-LUG ALUMINUM WHEELS (CLEAR COATED)

Hitch

• 7-WAY RV MOLDED PLUG
• 2-5/16" COUPLER
• TONGUE JACK
• SAFETY CHAINS
• BREAKAWAY KIT W/ CHARGER

Frame

• REAR WING (SPOILER)
• STORAGE COMPARTMENT IN FLOOR – 32" x 32" x 10"
• WINCH PLATE UNDER FLOOR – FRONT CENTER
• ALUMINUM ALL-TUBE FRAME CONSTRUCTION
• 7" EXTENDED TRIPLE-TUBE TONGUE – 56" CLEARANCE TO CENTER-BALL
• TONGUE STORAGE COMPARTMENT
• 5" TUBE MAIN FRAME
• 16" ON-CENTER ROOF BOWS
• 16" ON-CENTER FLOOR CROSS MEMBERS
• 16" ON-CENTER WALL POSTS
• (2) REAR BOGEY WHEELS

Vents

• (2) ROOF VENTS W/ MAXXAIR COVERS

Interior

• SCREWLESS ALUMINUM CEILING
• SCREWLESS ALUMINUM WALLS W/ 40" CARPET PROTECTIVE WAINSCOTING
• INSULATED R6 CEILING / R3 WALLS
• RAISED RUBBER-COIN FLOORING
• (4) HEAVY DUTY RECESSED D-RINGS ON FLOOR
• ALUMINUM WHEEL WELL BOXES

12 Volt Electrical

• STEREO W/ (2) INTERIOR SPEAKERS & (2) EXTERIOR SPEAKERS – BLUETOOTH / AM / FM
• LITHIUM BATTERY – WIRED TO AUXILIARY/CHARGE CIRCUIT
• (4) 12 VOLT L.E.D. 49" SLIMLINE INTERIOR LIGHTS W/ 3-WAY WALL SWITCHES
• 12 VOLT L.E.D. STRIP CABINET LIGHT W/ SWITCH
• (2) 12 VOLT L.E.D. CURB SIDE SCENE LIGHTS W/ WALL SWITCH
• (3) 12 VOLT L.E.D. LOADING LIGHTS W/ WALL SWITCH
• (1) 12 VOLT USB CABINET PORT
• MIDSHIP AMBER L.E.D. TURN SIGNALS / CLEARANCE LIGHTS
• L.E.D. TAIL LIGHTS & CLEARANCE LIGHTS
• L.E.D. REVERSE LIGHTS

Exterior

• SCREWLESS .040 ALUMINUM EXTERIOR
• ONE-PIECE ALUMINUM SEAMLESS ROOF
• ALUMINUM TREAD PLATE STONE GUARD
• POLISHED CAST ALUMINUM UPPER FRONT CORNERS
• STAINLESS STEEL FRONT CORNERS & TOP WRAP
• STAINLESS STEEL REAR CORNERS & HEADER
• SPREAD AXLE DESIGN W/ INDIVIDUAL ALUMINUM FENDERETTES
• 4" ALUMINUM TOP RAIL
• 7" ALUMINUM BOTTOM RAIL

Door

• 22" X 30" RV GENERATOR DOOR W/ RV LOCK & SLIDE-OUT TRAY
• 36" RV SIDE DOOR W/ RV LOCK/DEADBOLT & ALUMINUM HOLD-BACK
• STEP – SLIDE IN/OUT ALUMINUM
• PREMIUM ESCAPE DOOR W/ REMOVABLE WHEEL WELL & INTEGRATED STEP – 86" WIDE X 64" HIGH, 6′ FROM REAR (8-1/2" TIRE HEIGHT ABOVE FLOOR)
• RAMP REAR DOOR W/ SPRING ASSIST & END FLAP, 2,400 LB LOAD CAPACITY – 89-3/4" WIDE X 83" HIGH OPENING
• STAINLESS STEEL REAR PADDLE LOCKS FOR RAMP DOOR
• BEAVERTAILED FLOOR FOR E-Z LOADING – 4′ LONG / 3" DROP

Cabinets

• CABINET PACKAGE ACROSS FRONT WALL – 40" HIGH X 30" DEEP BASE CABINET, 18" TALL X 13" DEEP OVERHEAD CABINET

110 Volt Electrical

• (2) INTERIOR DUPLEX RECEPTACLES
• (1) EXTERIOR DUPLEX GFI RECEPTACLE
• 110 VOLT TO 12 VOLT 60 AMP POWER CONVERTER
• 30 AMP ELECTRICAL PANEL W/ EXTERIOR MOTOR BASE PLUG
• 30 AMP RV POWER CORD – 25′ LONG W/ TWIST-LOCK PLUG
• A/C PREP

Warranty

• 3 YEAR LIMITED MANUFACTURER’S WARRANTY
• Looking for a trailer built with a focus on quality? Tired of hearing about price, price, price?! Done with searching for last year’s deal on a phantom trailer? We stock and sell real trailers, with real standard features, and real upgrades! And we do it every day! Why waste thousands on a price point trailer that will only last a few years when you can spend a little more for a quality-focused trailer with upgrades that will give you trouble-free use for years and years!
• 
