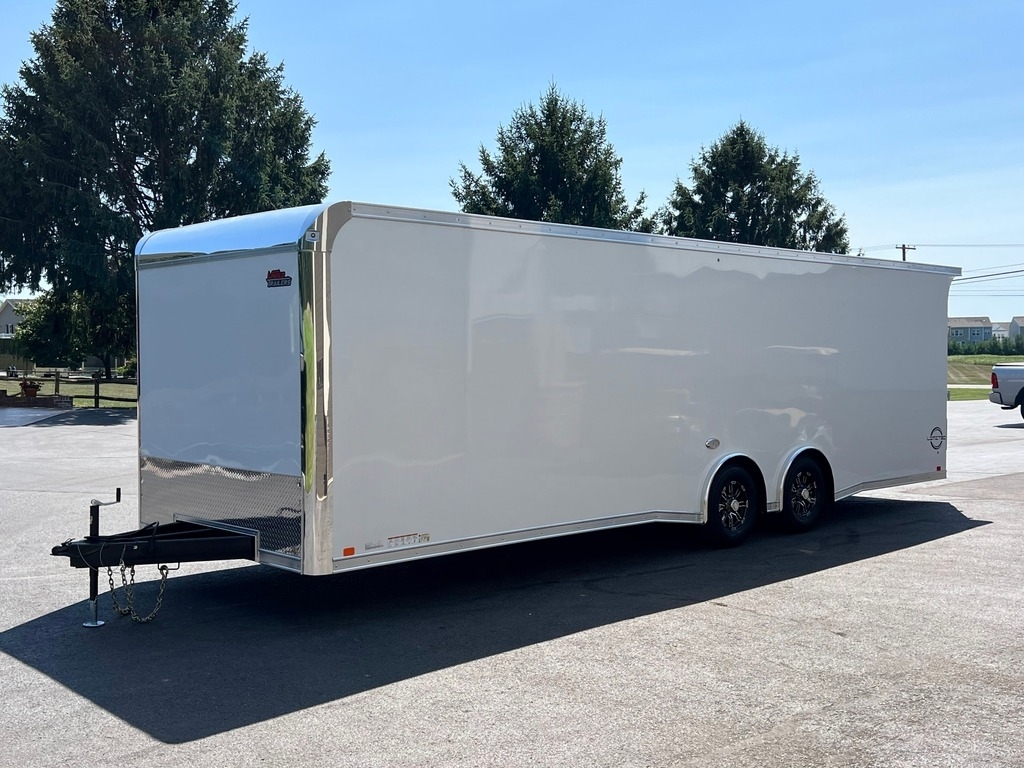

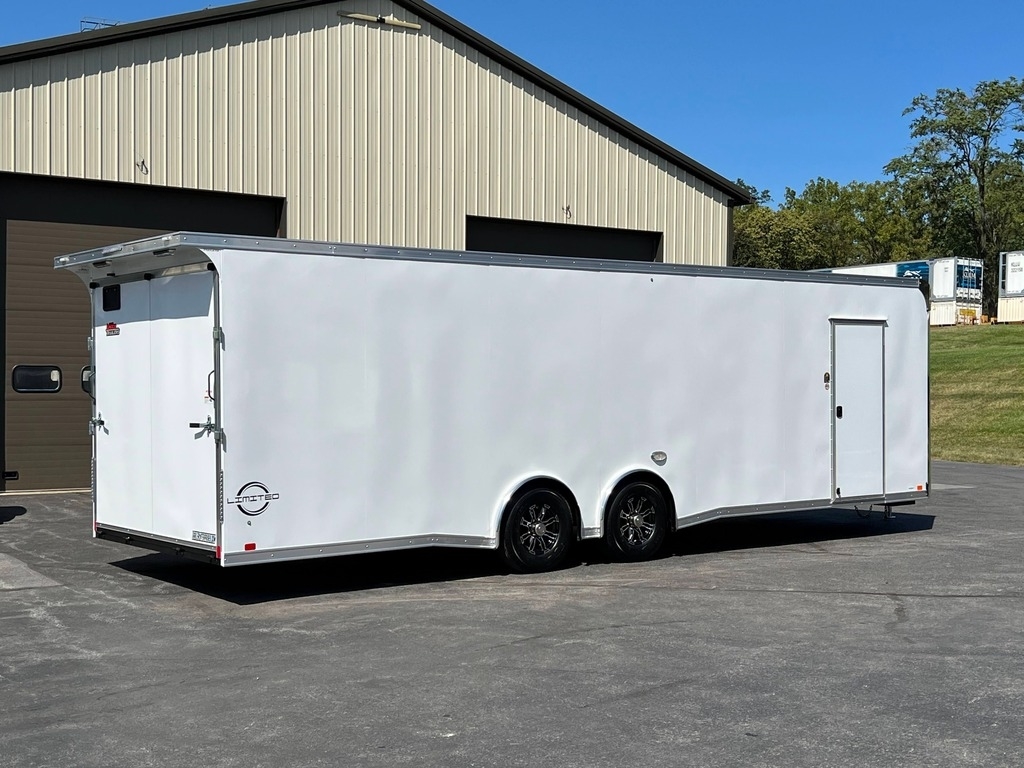

8.5′ X 28′ United Limited 10K GVWR Race Car Hauler Enclosed Trailer

Overview

• STOCK #: 222622
• VIN #: 7RXTE2824SA222622
• NEW 2025 UNITED LIMITED 8.5′ X 28′ 10K GVWR RACE CAR HAULER ENCLOSED TRAILER
• MODEL: LIM-8.528TA52
• 8.5′ WIDE X 28′ LONG X 7′ INTERIOR HEIGHT
• (6′ 11" DOOR HEIGHT CLEARANCE)
• GVWR: 9,990 LB
• EMPTY WEIGHT: 5,440 LB
• EXTERIOR COLOR: WHITE SCREWLESS

Axle

• (2) DEXTER 5,200 LB INDEPENDENT TORSION SUSPENSION AXLES
• ELECTRIC BRAKES ON ALL WHEELS
• E-Z® LUBE HUBS

Tires

• ST235/80R16F 12-PLY RADIAL TIRES
• 16" 8-LUG ALUMINUM WHEELS (CLEAR COATED)

Hitch

• 7-WAY RV MOLDED PLUG
• 2-5/16" COUPLER
• TONGUE JACK
• SAFETY CHAINS
• BREAKAWAY KIT W/ CHARGER

Frame

• REAR WING (SPOILER)
• STORAGE COMPARTMENT IN FLOOR
• WINCH MOUNT PLATE UNDER FLOOR – FRONT CENTER
• STEEL UNI-BODY CONSTRUCTION
• 6" TRIPLE-TUBE A-FRAME TONGUE
• 8" I-BEAM MAIN FRAME RAILS
• 16" ON-CENTER FLOOR CROSS MEMBERS
• 16" ON-CENTER WALL POSTS
• 16" ON-CENTER ROOF BOWS
• UNDERCOATING ON LOWER FRAME

Vents

• (1) NON-POWERED ROOF VENT – BRACED & WIRED FOR FUTURE A/C

Interior

• WHITE VINYL CEILING W/ ANGLED COVE EDGES
• 3/8" WHITE VINYL BOARD INTERIOR WALLS
• 3/4" PLYWOOD FLOOR
• (4) HEAVY DUTY RECESSED D-RINGS ON FLOOR
• FOAM SEAL DUST BLOCK TO CLOSE OFF EXTERIOR BOTTOM OF SIDEWALLS
• 12-VOLT ELECTRICAL –
• (4) 12 VOLT L.E.D. 40" VOODOO INTERIOR LIGHTS W/ WALL SWITCH AT SIDE DOOR
• (2) 12 VOLT L.E.D. 14" NOVA SCENE LOADING LIGHTS W/ WALL SWITCH AT REAR
• DEEP CYCLE MARINE BATTERY IN RECESSED BOX – WIRED TO AUXILIARY/CHARGE CIRCUIT
• 110 VOLT TO 12 VOLT 55 AMP POWER CONVERTER
• L.E.D. AMBER MIDSHIP TURN SIGNALS/CLEARANCE LIGHTS
• L.E.D. TAIL LIGHTS & CLEARANCE LIGHTS

Exterior

• SCREWLESS .030 SMOOTH ALUMINUM EXTERIOR
• ONE-PIECE ALUMINUM SEAMLESS ROOF
• ALUMINUM TREAD PLATE STONE GUARD
• POLISHED ALUMINUM FRONT CORNERS & TOP WRAP
• POLISHED CAST ALUMINUM UPPER FRONT CORNERS
• 4" ALUMINUM TOP RAIL & BOTTOM RAIL
• SPREAD AXLES W/ INDIVIDUAL ALUMINUM FENDERETTES
• WEATHER GUARD COATING ON FASTENERS

Door

• 32" RV SIDE DOOR W/ RV LOCK/DEADBOLT & ALUMINUM HOLD-BACK
• RAMP REAR DOOR W/ SPRING ASSIST & END FLAP, 3,000 LB LOAD CAPACITY – 95-3/4" WIDE X 83" HIGH OPENING
• CAMLOCKS ON RAMP DOOR
• BEAVERTAILED FLOOR FOR E-Z LOADING – 6′ LONG / 5" DROP

110 Volt Electrical

• (2) INTERIOR DUPLEX RECEPTACLES
• 30 AMP ELECTRICAL PANEL W/ EXTERIOR MOTOR BASE PLUG
• 30 AMP RV POWER CORD – 25′ LONG W/ TWIST-LOCK PLUG

Warranty

• 3 YEAR LIMITED MANUFACTURER’S WARRANTY
• 25 YEAR LIMITED FLOOR PLYWOOD WARRANTY
• Looking for a trailer built with a focus on quality? Tired of hearing about price, price, price?! Done with searching for last year’s deal on a phantom trailer? We stock and sell real trailers, with real standard features, and real upgrades! And we do it every day! Why waste thousands on a price point trailer that will only last a few years when you can spend a little more for a quality-focused trailer with upgrades that will give you trouble-free use for years and years!
• United Trailers is one of the Top 3 U.S. Manufacturers of steel-framed enclosed cargo and specialty trailers.
• – Built for the Long Haul –
• What the United Trailers team is all about. Only the best materials are used to make sure each trailer built meets the highest standards.
• – Built to Look Great –
• A long list of great standard features all add up to a trailer you can be proud of for years to come.
• – Built for Peace of Mind –
• As a proud member of the National Association of Trailer Manufacturers, United takes part in “Building Safer Trailers for Tomorrow.”™
• 
