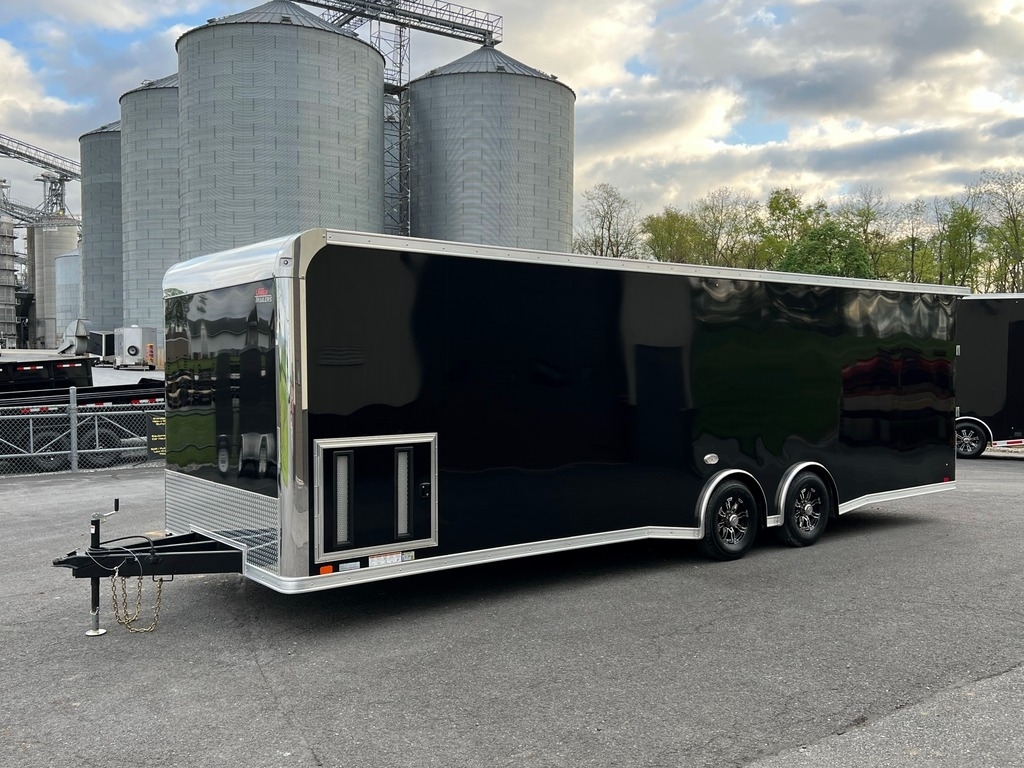

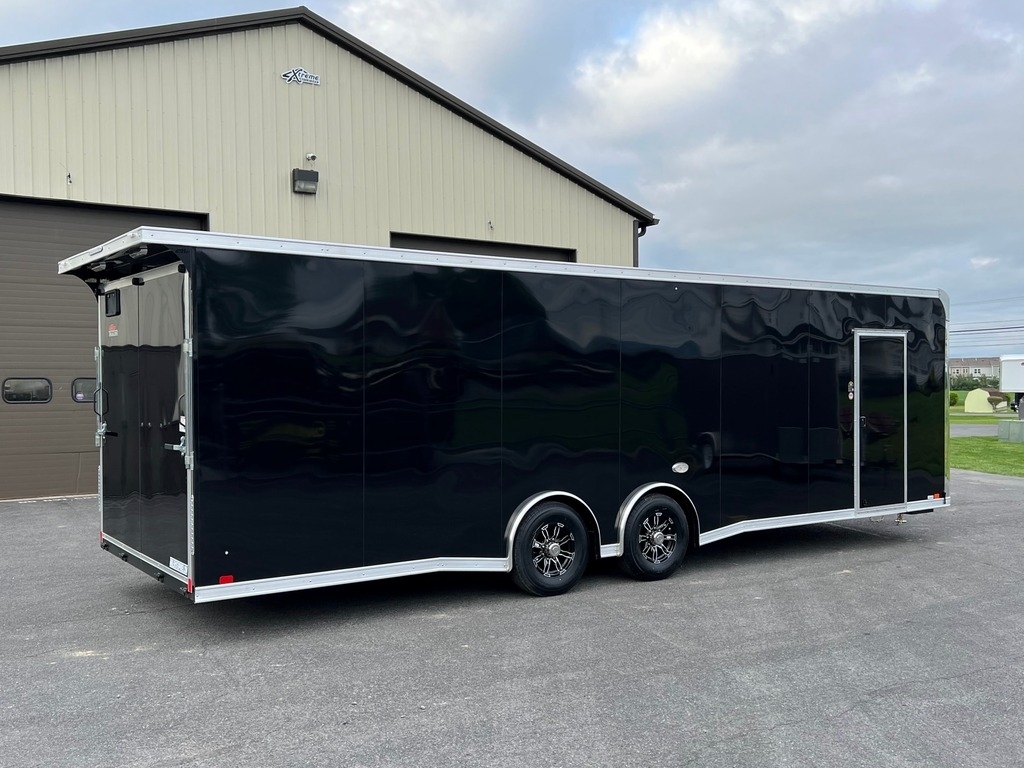

8.5′ X 28′ United Limited 10K GVWR Race Car Hauler Enclosed Trailer

Overview

• STOCK #: 221753
• VIN #: 7RXTE2820RA221753
• NEW 2024 UNITED LIMITED 8.5′ X 28′ 10K GVWR RACE CAR HAULER ENCLOSED TRAILER
• MODEL: LIM-8.528TA52
• 8.5′ WIDE X 28′ LONG (25′ 4" USABLE FLOOR) X 7′ INTERIOR HEIGHT
• (6′ 11" DOOR HEIGHT CLEARANCE)
• GVWR: 9,990 LB
• EMPTY WEIGHT: 5,800 LB
• EXTERIOR COLOR: BLACK SCREWLESS

Axle

• (2) DEXTER 5,200 LB INDEPENDENT TORSION SUSPENSION AXLES
• ELECTRIC BRAKES ON ALL WHEELS
• E-Z® LUBE HUBS

Tires

• ST235/80R16E 10-PLY RADIAL TIRES
• 16" 8-LUG ALUMINUM WHEELS (CLEAR COATED)
• CHROME CENTER CAPS & CHROME LUG NUTS

Hitch

• 7-WAY RV MOLDED PLUG
• 2-5/16" COUPLER
• TONGUE JACK
• SAFETY CHAINS
• BREAKAWAY KIT W/ CHARGER

Frame

• REAR WING (SPOILER)
• STORAGE COMPARTMENT IN FLOOR
• WINCH MOUNT PLATE UNDER FLOOR – FRONT CENTER
• STEEL UNI-BODY CONSTRUCTION
• TRIPLE-TUBE A-FRAME TONGUE – 48" CLEARANCE TO CENTER-BALL
• 8" I-BEAM MAIN FRAME RAILS
• 16" ON-CENTER FLOOR CROSS MEMBERS
• 16" ON-CENTER WALL POSTS
• 16" ON-CENTER ROOF BOWS
• UNDERCOATING ON LOWER FRAME

Vent

• ROOF VENT – BRACED & WIRED FOR FUTURE A/C

Interior

• WHITE VINYL CEILING W/ ANGLED COVE EDGES
• 3/8" WHITE VINYL BOARD INTERIOR WALLS
• RAISED RUBBER-COIN FLOORING
• 3/4" PLYWOOD SUBFLOOR
• (4) HEAVY DUTY RECESSED D-RINGS ON FLOOR
• FOAM SEAL DUST BLOCK TO CLOSE OFF EXTERIOR BOTTOM OF SIDEWALLS

12 Volt Electrical

• (2) NOVA 14" L.E.D. ANGLED SCENE LIGHTS ON REAR WING W/ WALL SWITCH AT REAR
• (4) VOODOO 40" L.E.D. INTERIOR LIGHTS ON ANGLED COVES W/ WALL SWITCH AT SIDE DOOR
• 110 VOLT TO 12 VOLT 55 AMP POWER CONVERTER
• DEEP CYCLE MARINE BATTERY IN RECESSED FLOOR BOX – WIRED TO CHARGE CIRCUIT
• CARBON-MONOXIDE DETECTOR (BATTERY OPERATED)
• MIDSHIP AMBER L.E.D. TURN SIGNALS / CLEARANCE LIGHTS
• L.E.D. CLEARANCE LIGHTS & TAIL LIGHTS

Exterior

• SCREWLESS .030 SMOOTH ALUMINUM EXTERIOR
• 24" ALUMINUM TREAD PLATE STONE GUARD
• ONE-PIECE ALUMINUM SEAMLESS ROOF
• POLISHED CAST ALUMINUM UPPER FRONT CORNERS
• POLISHED ALUMINUM FRONT CORNERS & TOP WRAP
• 4" ALUMINUM TOP RAIL & BOTTOM RAIL
• SPREAD AXLES W/ INDIVIDUAL ALUMINUM FENDERETTES
• WEATHER GUARD COATING ON FASTENERS

Door

• 36" WIDE X 30" HIGH RV GENERATOR DOOR W/ VENTS & RV LOCK
• 32" RV SIDE DOOR W/ RV LOCK/DEADBOLT & ALUMINUM HOLD-BACK
• BEAVERTAILED FLOOR FOR E-Z LOADING – 6′ LONG / 5" DROP
• RAMP REAR DOOR W/ SPRING ASSIST, 3,000 LB LOAD CAPACITY
• 95-3/4" WIDE X 83" HIGH RAMP DOOR OPENING
• ALUMINUM GRAB HANDLES ON RAMP DOOR
• 1′ ALL-ALUMINUM END FLAP ON RAMP DOOR

Cabinets

• ALUMINUM DELUXE CABINET PACKAGE ACROSS FRONT WALL – 36" HIGH X 28" DEEP L-SHAPED BASE CABINET, 16" TALL X 16" DEEP STRAIGHT OVERHEAD CABINET, & 24" WIDE WARDROBE W/ CLOTHES ROD
• – BASE CABINET CENTER DOORS RAISED W/ WINCH CABLE MOUSE HOLE
• – MILL FINISH ALUMINUM WORK BENCH TOP

110 Volt Electrical

• (2) INTERIOR DUPLEX RECEPTACLES
• 30 AMP ELECTRICAL PANEL W/ EXTERIOR MOTOR BASE PLUG
• 30 AMP RV POWER CORD – 25′ LONG W/ TWIST-LOCK PLUG

Warranty

• 3 YEAR LIMITED MANUFACTURER’S WARRANTY
• 25 YEAR LIMITED FLOOR PLYWOOD WARRANTY
• Looking for a trailer built with a focus on quality? Tired of hearing about price, price, price?! Done with searching for last year’s deal on a phantom trailer? We stock and sell real race trailers, with real standard features, and real upgrades! And we do it every day! Why waste thousands on a price point trailer that will only last a few years when you can spend a little more for a quality-focused trailer with upgrades that will give you trouble-free use for years and years!
• You will not find a better built or better optioned race trailer for the money than United! Don’t be fooled by the cheap imitators. They may look good in the pictures but they don’t have the heavy-duty, rigid steel frame or quality materials and workmanship of a United. And it doesn’t stop there… they sheet the interior walls with thin paneling and use wood framing and paneling in their tool cabinets.
• United has been building race trailers since 1989, and they’ve learned more than a thing or two along the way. They know that racers will accept nothing less than the best, and they deliver with top-of-the-line components throughout their race trailers. They’ve earned their reputation as one of the elite few manufacturers of superb steel-framed enclosed race car trailers.
• 
