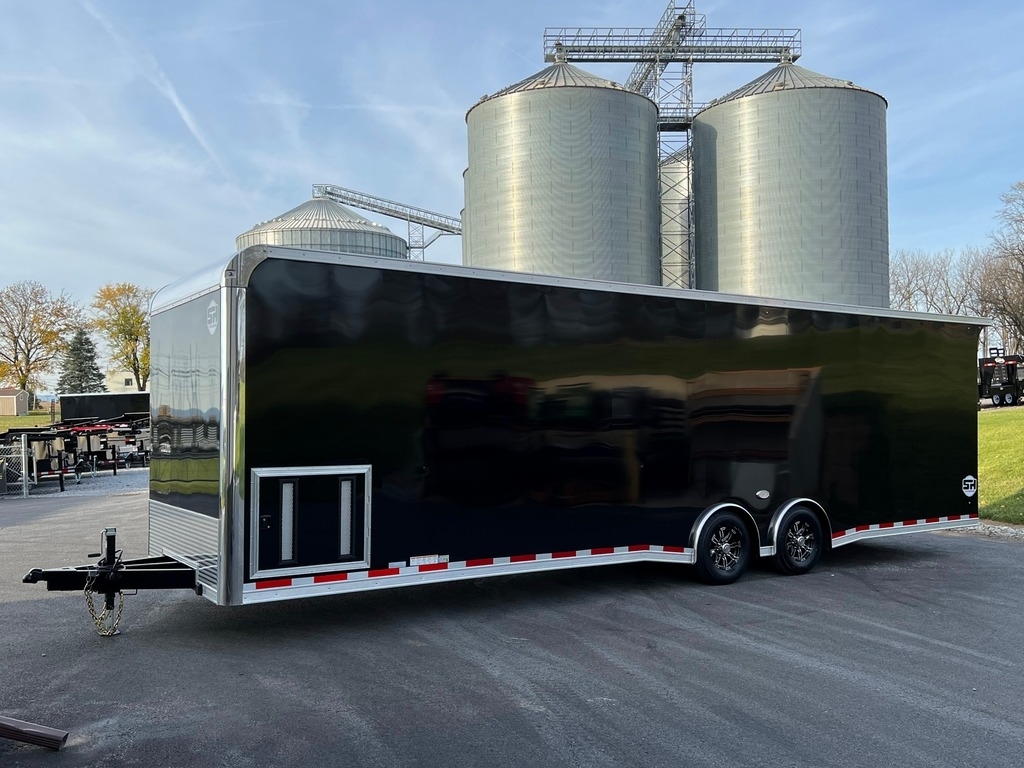

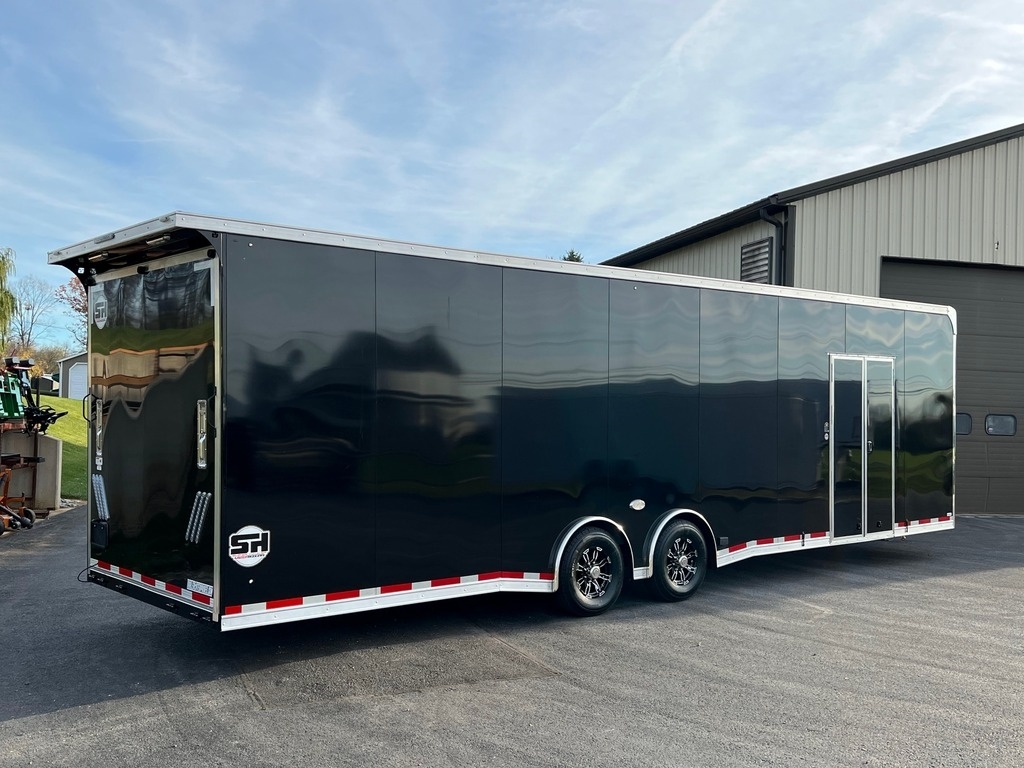

8.5′ X 32′ United SuperHauler X-Height Dirt Late Model Race Car Hauler Enclosed Trailer

Overview

• STOCK #: 221762
• VIN #: 7RXTE3223RA221762
• NEW 2024 UNITED 8.5′ X 32′ X-HEIGHT SUPER HAULER DIRT LATE MODEL RACE TRAILER
• MODEL: USH-8.532TA70
• 8.5′ WIDE X 32′ LONG (31′ 8" USABLE FLOOR) X 8′ INTERIOR HEIGHT
• (7′ 11" DOOR HEIGHT CLEARANCE)
• GVWR: 14,000 LB
• EMPTY WEIGHT: 7,540 LB
• EXTERIOR COLOR: BLACK SCREWLESS

Axle

• (2) DEXTER 7,000 LB INDEPENDENT TORSION SUSPENSION AXLES
• ELECTRIC BRAKES ON ALL WHEELS
• E-Z® LUBE HUBS

Tires

• ST235/80R16E 10-PLY RADIAL TIRES
• 8-LUG 16" ALUMINUM WHEELS (CLEAR COATED)
• CENTER CAPS W/ CHROME LUG NUTS

Hitch

• 7-WAY RV MOLDED PLUG
• 2-5/16" COUPLER
• 7K SQUARE-TUBE DROP-LEG TONGUE JACK
• SAFETY CHAINS
• BREAKAWAY KIT W/ CHARGER

Frame

• REAR WING (SPOILER)
• SKID ROLLER WHEELS WELDED ON REAR UNDERCARRIAGE (PAIR)
• STORAGE COMPARTMENT IN FLOOR
• WINCH MOUNT PLATE UNDER FLOOR
• STEEL UNI-BODY CONSTRUCTION
• TRIPLE-TUBE A-FRAME TONGUE – 48" CLEARANCE TO CENTER-BALL
• 8" I-BEAM MAIN FRAME RAILS
• 16" ON-CENTER FLOOR CROSS MEMBERS
• 16" ON-CENTER WALL POSTS
• 16" ON-CENTER ROOF BOWS
• UNDERCOATING ON LOWER FRAME

Vents

• FRONT ROOF VENT BRACED & WIRED FOR FUTURE A/C
• REAR NON-POWERED ROOF VENT

Interior

• SCREWLESS ALUMINUM CEILING W/ ANGLED COVE EDGES
• INSULATED CEILING
• SCREWLESS ALUMINUM INTERIOR WALLS OVER 3/8" PLYWOOD
• MARINE-GRADE CARPET PROTECTIVE WAINSCOTING 3′ UP ON INTERIOR WALLS
• FOAM SEAL DUST BLOCK TO CLOSE OFF EXTERIOR BOTTOM OF SIDEWALLS
• REAL RAISED RUBBER-COIN FLOORING
• 3/4" PLYWOOD SUBFLOOR
• ALUMINUM INTERIOR TRANSITION FLAP W/ HINGE FOR RAMP DOOR (HINGE COVER)
• (6) HEAVY DUTY RECESSED D-RINGS ON FLOOR
• (2) ROWS OF RECESSED E-TRACK ON ROAD SIDE WALL BEHIND BASE CABINET AT 12" & 30" ABOVE FLOOR
• (2) ROWS OF RECESSED E-TRACK ON CURB SIDE WALL AT 12" & 30" ABOVE FLOOR
• (2) ROWS OF RECESSED E-TRACK ON FRONT WALL AT 12" & 30" ABOVE FLOOR
• RAMP OVERS – 17′ LONG X 22" WIDE RAMP OVERS W/ LIFT-OUT STORAGE ACCESS DOORS (52" WIDE BETWEEN)

12 Volt Electrical

• (4) 12 VOLT L.E.D. HUX 14" INTERIOR LIGHTS
• 12 VOLT L.E.D. HUX 14" CABINET LIGHT
• (2) 3-WAY WALL SWITCHES FOR INTERIOR LIGHTS – (1) AT SIDE DOOR & (1) AT REAR
• (4) 12 VOLT L.E.D. RECESSED LOADING LIGHTS IN SIDEWALLS W/ WALL SWITCH AT REAR
• (2) NOVA 14" L.E.D. ANGLED SCENE LIGHTS – ON REAR W/ WALL SWITCH AT REAR
• USB 12-VOLT CHARGING PORT – ABOVE WORK BENCH
• CARBON-MONOXIDE DETECTOR (BATTERY OPERATED)
• (3) PAIRS OF L.E.D. TAIL LIGHTS W/ CHROME TRIM RINGS
• MIDSHIP AMBER L.E.D. TURN SIGNALS / CLEARANCE LIGHTS
• L.E.D. CLEARANCE LIGHTS

Exterior

• SCREWLESS .030 ALUMINUM EXTERIOR
• ONE-PIECE ALUMINUM SEAMLESS ROOF
• LUAN REINFORCEMENT LINING UNDER ROOF SHEET
• 24" ALUMINUM TREAD PLATE STONE GUARD
• POLISHED CAST ALUMINUM UPPER FRONT CORNERS
• POLISHED ALUMINUM FRONT CORNERS & TOP WRAP
• 4" ALUMINUM TOP RAIL & BOTTOM RAIL
• CONSPICUITY (REFLECTIVE) TAPE
• SPREAD AXLES W/ INDIVIDUAL ALUMINUM FENDERETTES
• WEATHER GUARD COATING ON FASTENERS

Door

• 36" WIDE X 30" HIGH RV GENERATOR DOOR W/ VENTS & RV LOCK/DEADBOLT
• 48" X 78" DOUBLE RV SIDE DOOR W/ RV LOCK/DEADBOLT
• BEAVERTAILED FLOOR FOR E-Z LOADING – 6′ LONG / 5" DROP
• RAMP REAR DOOR W/ SPRING ASSIST, 3,000 LB LOAD CAPACITY
• 95-3/4" WIDE X 95" HIGH RAMP DOOR OPENING
• (2) STAINLESS STEEL RECESSED CAMLOCKS IN RAMP DOOR
• 1′ ALUMINUM END FLAP ON RAMP DOOR

Cabinets

• 8′ LONG ALUMINUM CABINET PACKAGE ALONG ROAD SIDE WALL – 36" HIGH X 28" DEEP BASE CABINET W/ MILL ALUMINUM WORK BENCH TOP, 32" TALL X 16" DEEP OVERHEAD CABINET W/ MIDDLE ALUMINUM SHELF, & WARDROBE CABINET W/ CLOTHES ROD

Air

• AIR LINE PLUMBING – INLET IN BASE CABINET – (1) OUTLET COUPLING ABOVE WORK BENCH & (1) OUTLET COUPLING AT REAR ON ROAD SIDE WALL FOR HOSE REEL
• AIR COMPRESSOR WIRING PREP – SWITCH ABOVE WORK BENCH W/ 20 AMP RECEPTACLE IN BASE CABINET

110 Volt Electrical

• 110 VOLT TO 12 VOLT 55 AMP POWER CONVERTER
• (8) INTERIOR DUPLEX RECEPTACLES
• (1) EXTERIOR GFI RECEPTACLE
• 30 AMP ELECTRICAL PANEL W/ EXTERIOR MOTOR BASE PLUG
• 30 AMP RV POWER CORD – 25′ LONG W/ TWIST-LOCK PLUG

Warranty

• 3 YEAR LIMITED MANUFACTURER’S WARRANTY
• 25 YEAR LIMITED FLOOR PLYWOOD WARRANTY
• Looking for a trailer built with a focus on quality? Tired of hearing about price, price, price?! Done with searching for last year’s deal on a phantom trailer? We stock and sell real race trailers, with real standard features, and real upgrades! And we do it every day! Why waste thousands on a price point trailer that will only last a few years when you can spend a little more for a quality-focused trailer with upgrades that will give you trouble-free use for years and years!
• 
