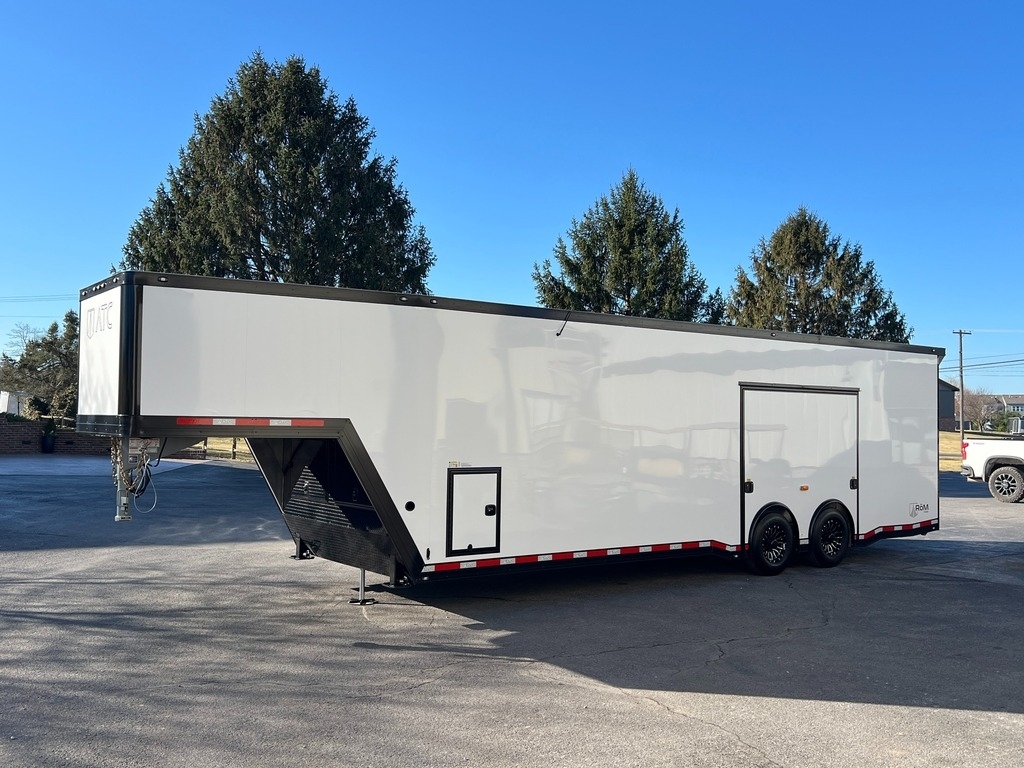

8.5′ X 36′ ATC RoM 750 Gooseneck Aluminum Race Car Trailer w/ Premium Escape Door

Overview

• STOCK #: 236214
• VIN #: 5JX3A3623TD236214
• NEW 2026 ATC RōM 750 8.5′ X 36′ GOOSENECK ALUMINUM RACE CAR HAULER ENCLOSED TRAILER W/ PREMIUM ESCAPE DOOR
• MODEL: RM750_G85753600+0-2T7.0K
• 8.5′ WIDE X 36′ LONG (24′ 8" USABLE FLOOR) X 7′ 6" INTERIOR HEIGHT
• (7′ 5" DOOR HEIGHT CLEARANCE)
• GVWR: 16,800 LB
• EMPTY WEIGHT: 6,454 LB
• PAYLOAD CAPACITY: 10,346 LB
• EXTERIOR COLOR: WHITE SCREWLESS W/ BLACKOUT

Axle

• (2) DEXTER 7,000 LB INDEPENDENT TORSION SUSPENSION AXLES
• ELECTRIC BRAKES ON ALL WHEELS
• E-Z® LUBE HUBS

Tires

• ST235/80R16G 14-PLY RADIAL TIRES
• 16" 8-LUG ALUMINUM WHEELS (CLEAR COATED)
• SPARE TIRE & WHEEL (MATCHING)

Hitch

• 7-WAY RV MOLDED PLUG
• 2-5/16" ADJUSTABLE COUPLER
• HYDRAULIC JACK
• SAFETY CHAINS
• BREAKAWAY KIT W/ CHARGER

Frame

• REAR WING (SPOILER)
• STORAGE COMPARTMENT IN FLOOR – 32" x 32" x 10"
• WINCH PLATE UNDER FLOOR – FRONT CENTER
• ALUMINUM ALL-TUBE FRAME CONSTRUCTION
• EXTERIOR STORAGE COMPARTMENT W/ (2) 36" X 24" DOORS
• 8" TUBE MAIN FRAME
• 16" ON-CENTER ROOF BOWS
• 16" ON-CENTER FLOOR CROSS MEMBERS
• 16" ON-CENTER WALL POSTS W/ ATC CROSS-GRID WALL TECHNOLOGY
• LIFETRAC MODULAR TRACK SYSTEM
• (2) REAR BOGEY WHEELS

Vents

• (2) ROOF VENTS W/ MAXXAIR COVERS

Interior

• SCREWLESS ALUMINUM CEILING
• SCREWLESS ALUMINUM WALLS W/ 40" CARPET PROTECTIVE WAINSCOTING
• INSULATED R6 CEILING / R3 WALLS
• RAISED RUBBER-COIN FLOORING
• (4) HEAVY DUTY RECESSED D-RINGS ON FLOOR
• ALUMINUM WHEEL WELL BOXES
• SPARE TIRE MOUNT

12 Volt Electrical

• STEREO W/ (2) INTERIOR SPEAKERS & (2) EXTERIOR SPEAKERS – BLUETOOTH / AM / FM
• LITHIUM BATTERY (100 AH) – WIRED TO AUXILIARY/CHARGE CIRCUIT
• (4) 12 VOLT L.E.D. 49" SLIMLINE INTERIOR LIGHTS W/ 3-WAY WALL SWITCHES
• 12 VOLT L.E.D. STRIP CABINET LIGHT W/ SWITCH
• (2) 12 VOLT L.E.D. CURB SIDE SCENE LIGHTS W/ WALL SWITCH
• (3) 12 VOLT L.E.D. LOADING LIGHTS W/ WALL SWITCH
• (1) 12 VOLT USB CABINET PORT
• (3) 12 VOLT USB COVE PORTS
• MIDSHIP AMBER L.E.D. TURN SIGNALS / CLEARANCE LIGHTS
• L.E.D. TAIL LIGHTS & CLEARANCE LIGHTS
• L.E.D. REVERSE LIGHTS

Exterior

• SCREWLESS .040 ALUMINUM EXTERIOR
• ONE-PIECE ALUMINUM SEAMLESS ROOF
• ALUMINUM TREAD PLATE STONE GUARD
• SPREAD AXLE DESIGN W/ INDIVIDUAL ALUMINUM FENDERETTES
• 4" ALUMINUM TOP RAIL
• 7" ALUMINUM BOTTOM RAIL

Door

• 22" X 30" RV GENERATOR DOOR W/ RV LOCK & SLIDE-OUT TRAY
• 48" RV SIDE DOOR W/ RV LOCK/DEADBOLT & ALUMINUM HOLD-BACK
• STEP – SLIDE IN/OUT ALUMINUM
• PREMIUM ESCAPE DOOR W/ REMOVABLE WHEEL WELL & INTEGRATED STEP – 86" WIDE X 64" HIGH, 6′ 2" FROM REAR (7-1/2" TIRE HEIGHT ABOVE FLOOR)
• RAMP REAR DOOR W/ SPRING ASSIST & END FLAP, 3,600 LB LOAD CAPACITY – 89-3/4" WIDE X 89" HIGH OPENING
• STAINLESS STEEL REAR PADDLE LOCKS FOR RAMP DOOR
• BEAVERTAILED FLOOR FOR E-Z LOADING – 4′ LONG / 3" DROP

Cabinets

• CABINET PACKAGE – 40" HIGH X 30" DEEP BASE CABINET W/ BUNK STAIRS & 18" TALL X 13" DEEP OVERHEAD CABINET

110 Volt Electrical

• (3) INTERIOR DUPLEX RECEPTACLES
• (1) EXTERIOR DUPLEX GFI RECEPTACLE
• 110 VOLT TO 12 VOLT 60 AMP POWER CONVERTER
• 50 AMP ELECTRICAL PANEL W/ EXTERIOR MOTOR BASE PLUG
• 50 AMP RV POWER CORD – 25′ LONG W/ TWIST-LOCK PLUG
• A/C PREP

Warranty

• 3 YEAR LIMITED MANUFACTURER’S WARRANTY
