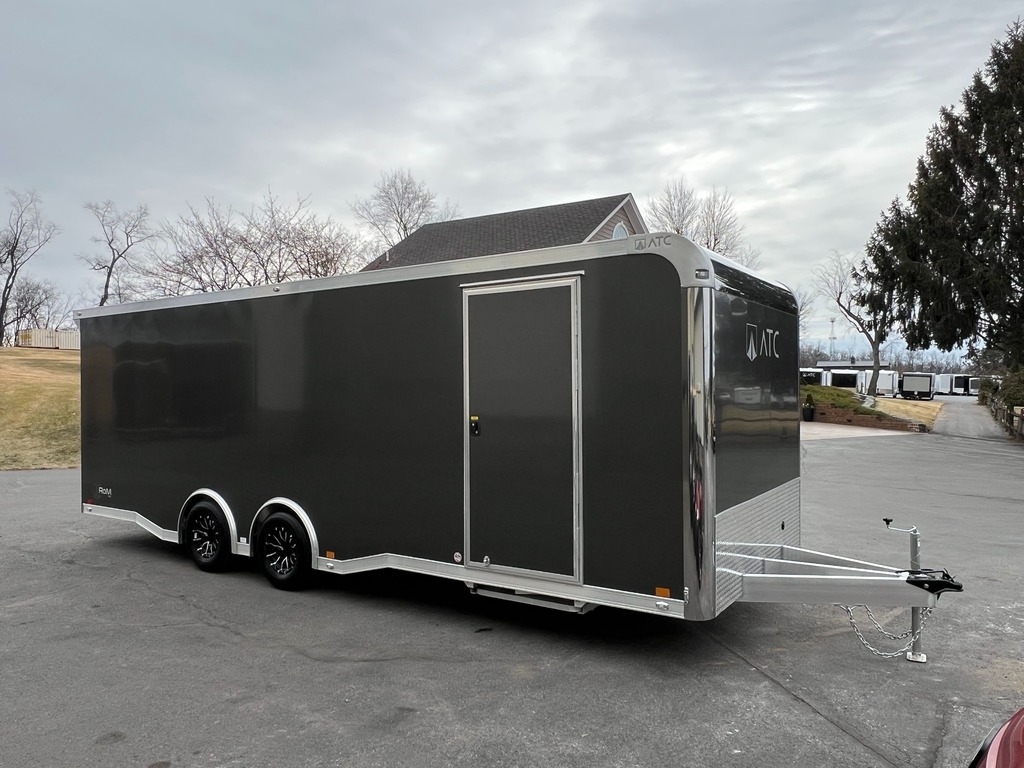

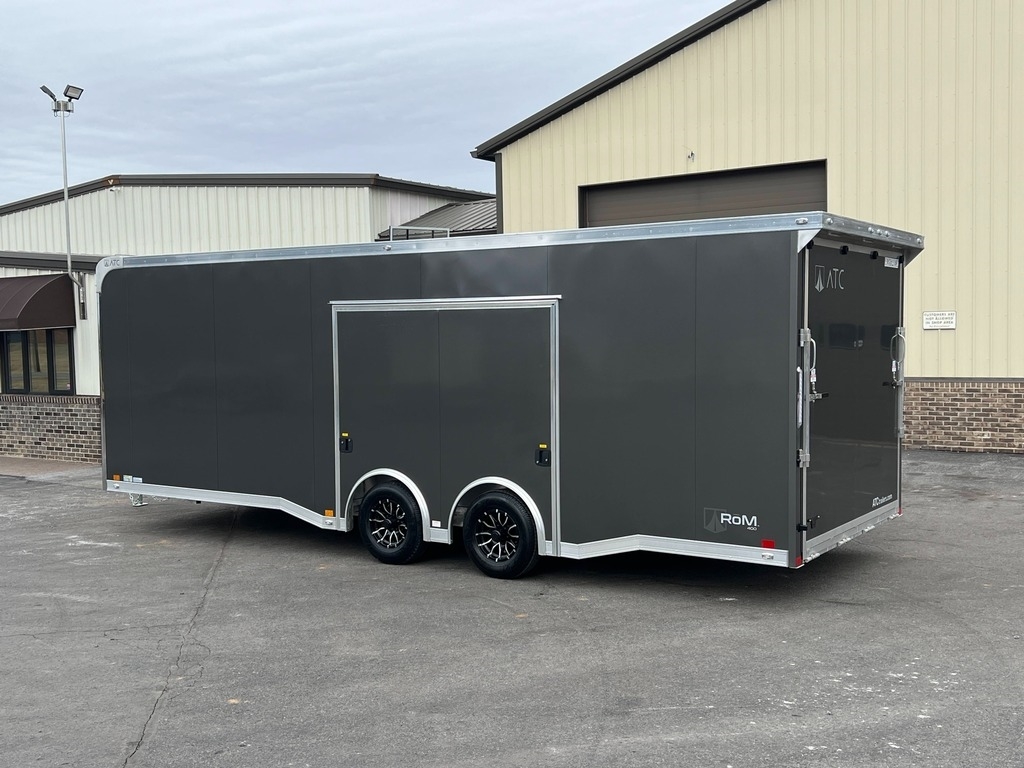

8.5′ X 24′ ATC RoM 400 Aluminum Race Car Trailer w/ Premium Escape Door

Overview

• STOCK #: 236391
• VIN #: 5JX1A2422TF236391
• NEW 2026 ATC RōM 400 8.5′ X 24′ ALUMINUM RACE CAR HAULER ENCLOSED TRAILER W/ PREMIUM ESCAPE DOOR
• MODEL: RM400_B85702400+0-2T5.2K
• 8.5′ WIDE X 24′ LONG (23′ 9" USABLE FLOOR) X 7′ INTERIOR HEIGHT
• (6′ 11" DOOR HEIGHT CLEARANCE)
• GVWR: 9,990 LB
• EMPTY WEIGHT: 3,121 LB
• PAYLOAD CAPACITY: 6,869 LB
• EXTERIOR COLOR: CHARCOAL METALLIC SCREWLESS

Axle

• (2) DEXTER 5,200 LB INDEPENDENT TORSION SUSPENSION AXLES
• ELECTRIC BRAKES ON ALL WHEELS
• E-Z® LUBE HUBS

Tires

• ST225/75R15E 10-PLY RADIAL TIRES
• 6-LUG 15" ALUMINUM WHEELS (CLEAR COATED)

Hitch

• 7-WAY RV MOLDED PLUG
• 2-5/16" COUPLER
• TONGUE JACK
• SAFETY CHAINS
• BREAKAWAY KIT W/ CHARGER

Frame

• REAR WING (SPOILER)
• WINCH PLATE UNDER FLOOR – FRONT CENTER
• ALUMINUM ALL-TUBE FRAME CONSTRUCTION
• 7" TRIPLE-TUBE A-FRAME TONGUE
• 5" TUBE MAIN FRAME
• 16" ON-CENTER FLOOR CROSS MEMBERS
• 16" ON-CENTER WALL POSTS
• 16" ON-CENTER ROOF BOWS
• REAR SKID PLATES

Vents

• ROOF VENT W/ MAXXAIR COVER

Interior

• SCREWLESS ALUMINUM CEILING
• SCREWLESS ALUMINUM WALLS
• 3/4" DRYMAX FLOOR
• (4) HEAVY DUTY RECESSED D-RINGS ON FLOOR
• ALUMINUM WHEEL WELL BOXES

12 Volt Electrical

• DEEP CYCLE MARINE BATTERY – WIRED TO AUXILIARY/CHARGE CIRCUIT
• (4) 12 VOLT L.E.D. 49" SLIMLINE INTERIOR LIGHTS W/ WALL SWITCH
• 12 VOLT L.E.D. STRIP CABINET LIGHT W/ SWITCH
• (3) 12 VOLT L.E.D. LOADING LIGHTS W/ WALL SWITCH
• L.E.D. TAIL LIGHTS & CLEARANCE LIGHTS

Exterior

• SCREWLESS .030 SMOOTH ALUMINUM EXTERIOR
• ONE-PIECE ALUMINUM SEAMLESS ROOF
• ALUMINUM TREAD PLATE STONE GUARD
• CAST ALUMINUM UPPER FRONT CORNERS
• STAINLESS STEEL FRONT CORNERS & TOP WRAP
• SPREAD AXLE DESIGN W/ INDIVIDUAL ALUMINUM FENDERETTES
• 4" ALUMINUM TOP RAIL & BOTTOM RAIL

Door

• 36" RV SIDE DOOR W/ RV LOCK/DEADBOLT & ALUMINUM HOLD-BACK
• STEP – SLIDE IN/OUT ALUMINUM
• PREMIUM ESCAPE DOOR W/ REMOVABLE WHEEL WELL & INTEGRATED STEP – 86" WIDE X 64" HIGH, 6′ FROM REAR (8-1/2" TIRE HEIGHT ABOVE FLOOR)
• RAMP REAR DOOR W/ SPRING ASSIST & END FLAP, 2,400 LB LOAD CAPACITY – 89-3/4" WIDE X 83" HIGH OPENING
• ALUMINUM CAMLOCKS ON RAMP DOOR
• BEAVERTAILED FLOOR FOR E-Z LOADING – 4′ LONG / 3" DROP

Cabinet

• OVERHEAD CABINET ACROSS FRONT WALL – 18" TALL X 13" DEEP

110 Volt Electrical

• (2) INTERIOR DUPLEX RECEPTACLES
• 110 VOLT TO 12 VOLT 55 AMP POWER CONVERTER
• 15 AMP EXTERIOR MOTOR BASE PLUG

Warranty

• 3 YEAR LIMITED MANUFACTURER’S WARRANTY
• Looking for a trailer built with a focus on quality? Tired of hearing about price, price, price?! Done with searching for last year’s deal on a phantom trailer? We stock and sell real trailers, with real standard features, and real upgrades! And we do it every day! Why waste thousands on a price point trailer that will only last a few years when you can spend a little more for a quality-focused trailer with upgrades that will give you trouble-free use for years and years!
• 
